Progress report — optimal configuration study ·
20260912T055851Z (UTC) · all code on
NS1.GEORGELAMBERT.ORG (70.88.205.138)
This document folds every ladder we have run (1-core ZFS, NS1-orchestrated, tmpfs maximize, and this exhaustive 8c/16G ZFS factorial) plus UDP / MQTT / reconnect probes. It recommends a lab config and a three-box HP DL360 Gen10 projection. veth/10G was not changed.
Keep NATS + JetStream. Do not replace the fabric with MQTT, UDP, or a custom persistent-socket protocol for Verae jobs/events/archive. Those are either slower, less durable, or already what NATS is.
Lab (NS1, one host, three LXC) — optimal now
| Stream | Storage | Replicas | Why |
|---|---|---|---|
ZAPIER_JOBS, ZAPIER_WEBHOOKS,
VERAE_ARCHIVE |
file (ZFS) | 3 | Survive a nats LXC death; archive must persist |
ZAPIER_EVENTS |
memory | 3 | Waiters are latency-sensitive; events rebuild from job status |
ZAPIER_USAGE |
file | 3 | Telemetry, limits + max-age |
Keep 8 cores / 16 GiB / max_mem: 8G on
510–513 (already live). Do not leave JetStream on
tmpfs. Do not drop product streams to r=1. Reuse
one NATS connection per process (already true in
middleware); never connect-per-message.
Metal (3× DL360 Gen10) — optimal later
Same stream table. File store on local NVMe/M.2, not
a shared SAN. Cluster + client on 10GbE (or 25GbE if
you already have it). Dual Gold Xeon is surplus CPU for this workload;
8–16 cores dedicated to nats-server is enough. Expected JS
file r=3: ~40–80k 128 B pubs/s (about
3–6× this lab’s 8c ZFS 1p, 2–4× tmpfs
1p) — bounded by 10GbE replica RTT, not by Xeon clocks.
Core NATS will sit in the 1–3M msgs/s band until the
NIC saturates (~9 Gbit/s ≈ 8–9M × 128 B theoretical; CPU and client will
hit first).
Live cluster during this run: LXC 510–513 8 cores / 16
GiB, JetStream on ZFS (tmpfs from the maximize
study was already unmounted). Extra factorial: file/memory × replicas
1/3, 4 KiB file r=3, reconnect-per-message ping, UDP echo 510→511, MQTT
QoS0 against nats-a :1883. Product streams were not the
bench target.

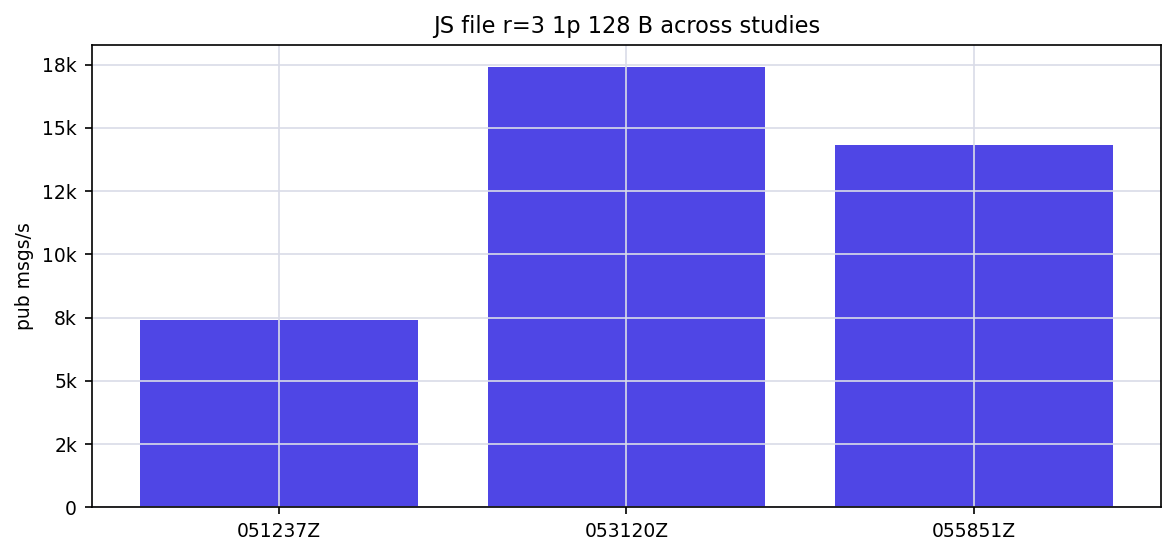

| Study | Env | Core 1p pub | JS file r=3 1p | JS mem r=3 4p | Ping p99 |
|---|---|---|---|---|---|
20260912T051237Z |
1c/1G ZFS (NS1 orch.) | 502,502 | 7,393 | — | 1.377ms |
20260912T053120Z |
8c/16G tmpfs + mem extra | 599,004 | 17,388 | 36,355 | 0.684ms |
20260912T055851Z |
8c/16G ZFS exhaustive 20260912T055851Z |
662,227 | 14,330 | 37,736 | 1.140ms |
| Run | What | Pub msgs/s | Pub MB/s |
|---|---|---|---|
js-file-1p-20k-128-r1 |
file r=1 1p 128 B | 18,888 | 2.31 |
js-file-4p-50k-128-r1 |
file r=1 4p 128 B | 24,560 | 3.00 |
js-1p-20k-128-r3 |
file r=3 1p 128 B | 14,330 | 1.75 |
js-4p-50k-128-r3 |
file r=3 4p 128 B | 19,232 | 2.35 |
js-4p-20k-1k-r3 |
file r=3 4p 1 KiB | 15,197 | 14.84 |
js-file-1p-20k-4k-r3 |
file r=3 1p 4 KiB | 8,673 | 33.88 |
js-mem-1p-20k-128-r1 |
memory r=1 1p 128 B | 29,972 | 3.66 |
js-mem-4p-50k-128-r1 |
memory r=1 4p 128 B | 64,923 | 7.93 |
js-mem-1p-20k-128-r3 |
memory r=3 1p 128 B | 20,188 | 2.46 |
js-mem-4p-50k-128-r3 |
memory r=3 4p 128 B | 37,736 | 4.61 |
js-mem-4p-20k-1k-r3 |
memory r=3 4p 1 KiB | 33,916 | 33.12 |

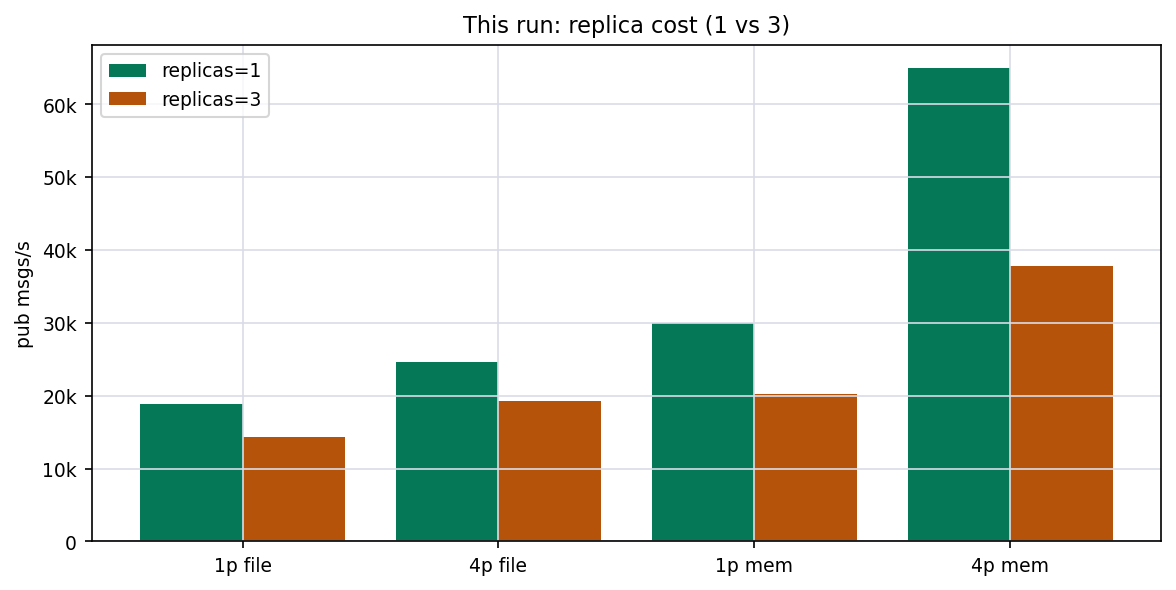

Replica 1 vs 3 on this stand (file 1p 128 B): r=1 is 18,888 vs r=3 14,330 (1.32× if r=3 is the slower one). Memory r=1 1p 29,972 vs memory r=3 20,188.
| Probe | Result | Meaning |
|---|---|---|
| NATS ping (persistent sockets) p50 / p99 | 0.456ms / 1.140ms | Quiet hop with a long-lived TCP conn |
| NATS reconnect-per-message p50 / p99 | 0.503ms / 1.750ms | TCP+NATS handshake on every pub — this is the tax to avoid |
| UDP echo 510→511 p99 | 0.363ms | Raw datagram ceiling on the same veth (no NATS) |
| MQTT QoS0 5k×128 B | 44862 pubs/s | nats-server MQTT gateway on :1883 |
Core 1p1s 128 B this run: 662,227 pub msgs/s. Flood delay is still backlog/consume_rate, not RTT.
NATS already is persistent TCP sockets with a tiny binary protocol, automatic reconnect, and optional JetStream durability. “Reduce connection overhead” is a client discipline: hold the connection. The reconnect probe exists to prove that opening a socket per job would dominate ping RTT.
| Idea | Fit for Verae jobs/events/archive | Throughput vs NATS core | Durability |
|---|---|---|---|
| NATS core pub/sub | Fan-out, request-reply (verae.billing.*) |
Highest we measured (~0.5–2M msgs/s) | None |
| NATS JetStream file r=3 | Jobs, webhooks, archive | ~8–23k on this lab; see metal projection | Disk + 1-node loss |
| NATS JetStream memory r=3 | Events mailbox | ~22–36k on this lab | RAM + 1-node loss; empty on full restart |
| MQTT (NATS gateway or Mosquitto) | IoT endpoints that already speak MQTT | This probe: 44862 pubs/s QoS0 — typically well below NATS core; QoS1 ≈ JetStream-ish with more chatter | QoS1/2 session state; not our WORM model |
| UDP | Telemetry that may drop | RTT 0.363ms p99 — fastest hop, no reliability, no cluster, no auth | None |
| Custom persistent sockets / HTTP long-poll | Worse NATS | You would re-implement reconnect, flow control, and fan-out | DIY |
| WebSocket | Browsers only | Extra framing; NATS already has WS for UIs, not for middleware | Same as core/JS behind it |
| QUIC / WebTransport | Lossy WAN / browsers | NATS QUIC is not the lab path; 10GbE LAN does not need it | Same |
| Kafka / Redis streams | Heavy log replay | Higher ops cost; not on vmbr1 today |
Yes, heavier |
MQTT: NATS documents MQTT as an enabling
gateway for existing IoT, and prefers NATS end-to-end for greenfield.
Zapier cloud never talks NATS or MQTT; it talks HTTPS. Putting MQTT in
the middle of timestamp jobs adds protocol translation and QoS timers
without helping jobId → events. Use MQTT only if a device
already cannot speak NATS.
UDP: Fine as a measurement of veth RTT. Unusable as the job fabric (no ack, no replica, no flow control). NATS ping is already within a small multiple of UDP on this bridge.
Persistence sockets: Middleware and keep already
keep NATS_URL connections open. Optimal: one connection (or
a small pool) per process, max_reconnect, jitter, no
connect() in the per-job path. The reconnect ladder is the
anti-pattern.
max_mem: 8G stays. Required for memory
streams.ZAPIER_EVENTS if we
accept “all three nats CTs reboot ⇒ in-flight waiters fall back to HTTP
poll.” That matches the designed wait path
(GET /api/status/{jobId}).max_ack_pending for webhooks.Assumed bill of materials (state it in the buy):
| Piece | Assumption |
|---|---|
| Chassis | 3× DL360 Gen10 1U |
| CPU | Dual 2nd-gen Xeon Gold (e.g. 6226R 16c or 6248 20c — 32–40 cores/box) |
| Memory | DDR4-2933, 192–384 GiB/box (6–12×32 GiB); NATS will not use most of it |
| Storage | NVMe M.2 or U.2 for
/var/lib/nats/jetstream (XFS or ext4, not
shared ZFS over the network). RAID1 of two NVMe if you want disk HA
inside a box |
| Network | 10GbE (FlexibleLOM or PCIe); dedicated VLAN for
:4222+:6222. Do not share with public
vmbr0 traffic |
| OS | Debian/Ubuntu bare metal, nats-server systemd, same
nats.conf as lab (bind private IP only) |
What changes vs NS1 LXC
| Factor | NS1 today | 3× DL360 | Effect on JS file r=3 |
|---|---|---|---|
| Failure domain | 1 Proxmox host | 3 chassis, 3 NVMe, 3 NICs | r=3 means something |
| Disk | Shared ZFS SSD2 | Local NVMe fsync ~50–150 µs | Big win vs ZFS; similar to tmpfs for sequential 128 B |
| Replica path | veth/bridge (~µs–tens of µs) | 10GbE RTT typically 50–200 µs | Slower than same-host tmpfs, faster than a bad SAN |
| CPU | 8 of 40 shared | 32–40 dedicated Gold cores | Headroom for many clients, not 10× JS |
| NIC | software 10G veth, already ~5 Gbit/s core | real 10GbE ~9 Gbit/s TCP | Core NATS can grow; JS r=3 stays replica-bound |
Projected bands (128 B, 3-node cluster, dedicated 10GbE, local NVMe, 8+ cores pinned to nats-server):
| Workload | NS1 measured (best) | DL360 projection | Confidence |
|---|---|---|---|
| Core pub/sub 1p | 0.5–0.8M | 0.8–2M | Medium — NIC + syscall, plenty of CPU |
| Core 4p4s 1 KiB | ~0.6–0.7M (~0.6 GB/s) | ~1M msgs/s / ~1 GB/s approaching 10GbE | Medium |
| JS file r=1 | this run r=1 | 80–200k pubs/s | Medium — NVMe + no replica wait |
| JS file r=3 | 7–23k (ZFS/tmpfs) | 40–80k pubs/s | Medium-low — replica RTT dominates; 3 NVMe still help vs shared ZFS |
| JS memory r=3 | 22–36k | 50–100k | Medium-low — RAM + 10GbE ack |
| Ping p99 | 0.7–1.4 ms | 0.2–0.6 ms | Medium — real NIC but no Proxmox tax |
These are not DL360 measurements. Scale from: (a) our replica-1 vs replica-3 ratio once this run’s r=1 numbers exist, (b) tmpfs vs ZFS ratio (2.35× on 1p), (c) Synadia/nats bench async file r=1 ~100–400k on NVMe loopback, derated for 10GbE RTT.
Buy notes: M.2 via Dual uFF / enablement kit; put
JetStream on NVMe directly, not behind a RAID
controller write-through unless you measure. 1GbE onboard is a trap —
use 10GbE for :6222. Dual Gold is for isolation (nats vs
worm/tree vs OS), not because JS needs 56 cores.
Re-run exhaustive: bash scripts/exhaustive-ns1-study.sh
on NS1.
